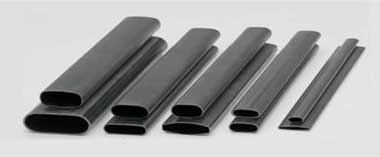

Precision Oval Pipe

OVAL FLAT STEEL TUBES



Raseshwari Metallic's manufactures oval flat tubes from cold rolled tubes for use in Furniture, Fitness Equipment, Railings, Fencing etc. The wide variety of dimensions & finishes of oval flat tubes meet the specific needs of the customers. Dimensional accuracy, good tensile strength, custom sizes, grades and good consistency with better tolerances are some prime features of our oval flat tubes from cold rolled tubes.



Size Range



Min.

Max.

Outer Diameter

22x12mm

50x25mm

Thickness

0.50 mm

2.00 mm


Flat Over

Sizes Gauge 25 24 23 22 21 20 19 18 17 16 15 14 13
  mm 0.45 0.5 0.58 0.68 0.78 0.88 0.98 1.18 1.38 1.58 1.78 1.98 2.37
Oval Section
22*12         Y Y Y Y Y Y Y
33*13      Y Y Y Y Y Y Y Y Y  Y  Y
35*15      Y  Y Y Y Y Y Y Y Y  Y Y
37*17             Y Y Y Y Y Y Y
38*20               Y Y Y Y Y Y
40*20               Y Y Y Y Y Y
43*21               Y Y Y Y Y   Y
45*19               Y Y Y Y Y Y
50*25               Y Y Y Y Y   Y

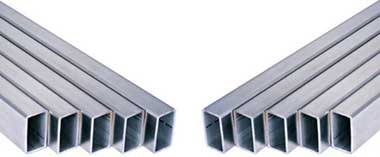

Precision Rectangle Pipe

RECTANGULAR HOLLOW SECTIONS

Rectangular Cold Rolled Tubes are popularly known as Hollow Sections, Hollow Section Profiles, Rectangular Hollow sections etc. These are manufactured in compliance with Indian & International standards, which are offered in different dimensions & finishes to meet the critical application needs.



Rectangular cold rolled tubes have a high metallurgical strength and extensively used for making frames and structures. Though they can vary in weight and diameter based on the client's requirement, the shape of these slim tubes are ideal for application in diverse industries like petroleum, petro-chemical & other energy sector, marine, food & dairy and automobile industry (for developing truck racks, truck beds trailers etc.). In the construction sector rectangular tubes are used for ornamental works and railings.



With experience of years, Raseshwari Metallics offers rectangular cold rolled tubes with high tensile strength which makes them an ideal for manufacturing fitness equipment. The tubes meet higher standards of surface finish and have close tolerance on dimensions. They have high heat transfer co-efficient, high strength and weight ratio. Their improved tolerances facilitate better manipulation characteristics that help in bending, swaging and other operations requiring tight mandel fits. Our range of rectangular tubes are crafted in the highest industry standards and are available for a wide range of standard or custom ornamental and structural applications.

Size Range



Min.

Max.

Outer Diameter

20x10mm

80x40mm

Thickness

0.50 mm

2.80 mm


Rectangular

Sizes Gauge 25 24 23 22 21 20 19 18 17 16 15 14 13
  mm 0.45 0.5 0.58 0.68 0.78 0.88 0.98 1.18 1.38 1.58 1.78 1.98 2.37
Rectangular Section
20*10     Y Y Y Y Y Y Y Y Y
25*12     Y Y Y Y Y Y Y Y Y
19.5*15       Y Y Y Y Y Y Y Y Y Y
20*15       Y Y Y Y Y Y Y Y Y Y
19*32        Y Y Y Y Y Y Y Y Y Y
30*15                 Y
20*30        Y Y Y Y Y Y Y Y  Y  Y
40*10        Y Y Y Y Y Y Y Y  Y  Y
40*20        Y Y Y Y Y Y Y Y Y Y
40*25               Y Y Y Y Y Y Y
50*25              Y Y Y Y Y Y Y Y
50*30             Y Y Y Y Y Y Y Y
60*30               Y Y Y Y Y Y Y
60*40               Y Y Y Y Y Y Y

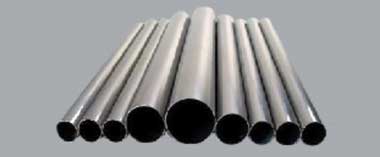

Precision Round Pipe

ROUND STEEL TUBES

Raseshwari is empowered with world class infrastructure having vertically integrated facilities for production and delivery. For production, there are SOCO as well as manual cutting machines and end facing machines, providing reliable operation with enhanced productivity.





At present, the total installed capacity is 1500 MT for precision tubes. For timely response to customers' special requirements, a countrywide sales network has been established. The chain of offices are located at Panchkula, Delhi, Chandigarh, Mumbai & Ahmedabad.

Size Range



Min.

Max.

Outer Diameter

25x17mm

60x30mm

Thickness

0.50 mm

2.00 mm


Round Pipe

Thickness (Inch) Gauge 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11
Thickness mm 0.45 0.5 0.58 0.68 0.78 0.88 0.98 1.18 1.38 1.58 1.78 1.98 2.37 2.5 2.8
O.D(mm) O.D(Inch)


12.7   Y  Y  Y  Y  Y  Y  Y  Y  Y Y
15.00         Y Y Y Y Y Y Y Y Y
15.88   Y Y   Y  Y  Y  Y  Y Y   Y  Y  Y Y
18.26           Y Y Y Y Y Y Y Y
19.05   Y  Y  Y  Y  Y  Y  Y  Y  Y  Y  Y Y
22.23   Y  Y Y   Y Y   Y  Y  Y  Y Y   Y Y  Y Y
23.42   Y  Y  Y Y  Y Y  Y  Y   Y  Y  Y Y Y   Y
25.4   Y  Y  Y  Y  Y  Y  Y  Y  Y Y   Y Y  Y  Y
25.7   Y  Y  Y  Y  Y  Y  Y Y   Y  Y  Y Y  Y  Y
28.58   Y  Y  Y Y  Y  Y  Y  Y  Y  Y  Y Y  Y  Y
31.75         Y  Y  Y  Y  Y  Y  Y  Y Y  Y  Y
33.7
34.50                  Y
34.93         Y  Y  Y  Y  Y  Y  Y  Y Y  Y  Y
38.1         Y  Y  Y  Y  Y  Y  Y  Y Y Y Y
40           Y Y Y Y Y Y Y Y
41.28           Y  Y  Y  Y  Y  Y  Y  Y  Y Y  Y
44.45            Y Y  Y  Y  Y  Y  Y  Y Y   Y Y
48           Y Y Y Y Y Y Y Y Y
50            Y Y  Y  Y  Y  Y  Y  Y  Y  Y Y
50.8            Y Y  Y  Y  Y  Y  Y  Y  Y  Y Y
57.15             Y  Y  Y  Y  Y  Y  Y  Y  Y Y
63.5               Y  Y  Y  Y  Y  Y  Y  Y
76.2                 Y  Y  Y  Y  Y  Y Y

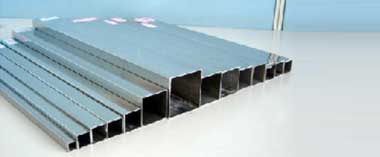

Precision Square Pipe

SQUARE STEEL TUBES

Square steel tubes are manufactured from cold rolled steel strips with sharp edges in different dimensions. Along with all standard dimensions, we also cater to intermediate non-standard dimensions and special finishes based upon the requirements of automotive industry, general engineering purposes, production of furniture, household fittings, leisure equipment and for structural purposes.





The square steel tubes we offer are made in adherence to Indian and International standards.

Size Range



Min.

Max.

Outer Diameter

19x19mm

50x50mm

Thickness

0.50 mm

2.80 mm


Steel Pipe

Sizes Gauge 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11
  mm 0.45 0.5 0.58 0.68 0.78 0.88 0.98 1.18 1.38 1.58 1.78 1.98 2.37 2.5 2.8
Square Section
15*15     Y  Y  Y  Y  Y  Y Y  Y  Y
19*19       Y Y   Y  Y  Y Y   Y Y
20*20       Y Y  Y  Y  Y  Y  Y Y
25*25         Y  Y Y   Y Y   Y  Y  Y Y
30*30         Y  Y  Y  Y  Y  Y  Y  Y Y
38*38           Y Y Y Y Y Y Y Y Y Y
40*40            Y  Y  Y Y  Y   Y  Y  Y Y Y
50*50                Y  Y  Y  Y  Y  Y Y Y Y
